РусскийCable ladder height 125 - I6KLM125

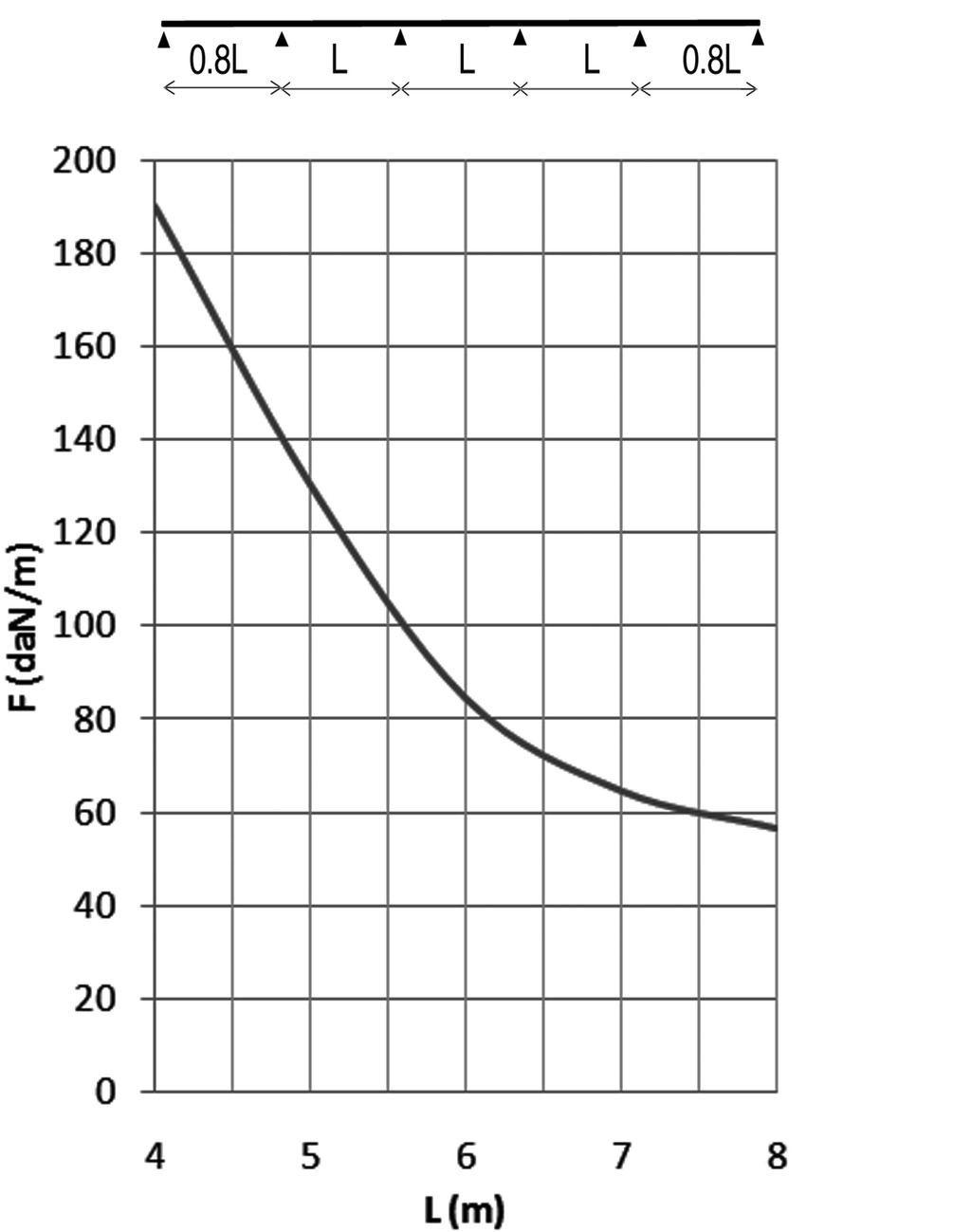

Cable ladder for large support distances up to 8 metres
Perforated C rungs 41 x 21
Usable inner height: 102 mm
Rung distance: 250 mm
To order: Width 700 - 1200 mm (increments of 100 mm)
ETIM: EC000854
Perforated C rungs 41 x 21
Usable inner height: 102 mm
Rung distance: 250 mm
To order: Width 700 - 1200 mm (increments of 100 mm)
ETIM: EC000854
| HD | Reference |
mm |
mm |
mm |
mm |
kg m |
Stock | Unit | |
| - | I6KLM125.150 | 125 | 150 | 6000 | 5.723 | 6 | M | ||
| - | I6KLM125.200 | 125 | 218 | 1.5 | 6000 | 5.851 | 60 | M | |
| - | I6KLM125.300 | 125 | 318 | 1.5 | 6000 | 6.111 | 60 | M | |
| - | I6KLM125.400 | 125 | 418 | 1.5 | 6000 | 6.363 | 60 | M | |
| - | I6KLM125.450 | 125 | 450 | 6000 | 6.491 | 6 | M | ||
| - | I6KLM125.500 | 125 | 518 | 1.5 | 6000 | 6.619 | 60 | M | |
| - | I6KLM125.600 | 125 | 618 | 1.5 | 6000 | 6.875 | 60 | M | |
| - | I6KLM125.750 | 125 | 750 | 6000 | 7.259 | 6 | M | ||
| - | I6KLM125.800 | 125 | 800 | 6000 | 7.387 | 6 | M | ||
| - | I6KLM125.900 | 125 | 900 | 6000 | 7.644 | 6 | M | ||
| - | I6KLM125.1000 | 125 | 1000 | 6000 | 7.900 | 6 | M |
HD
Reference
mm
mm
mm
mm
kg
m
Stock
Unit
- - I6KLM125.150 125 150 6000 5.723 6 M
- - I6KLM125.200 125 218 1.5 6000 5.851 60 M
- - I6KLM125.300 125 318 1.5 6000 6.111 60 M
- - I6KLM125.400 125 418 1.5 6000 6.363 60 M
- - I6KLM125.450 125 450 6000 6.491 6 M
- - I6KLM125.500 125 518 1.5 6000 6.619 60 M
- - I6KLM125.600 125 618 1.5 6000 6.875 60 M
- - I6KLM125.750 125 750 6000 7.259 6 M
- - I6KLM125.800 125 800 6000 7.387 6 M
- - I6KLM125.900 125 900 6000 7.644 6 M
- - I6KLM125.1000 125 1000 6000 7.900 6 M
